Coriolis
ABB Measurement & Analytics

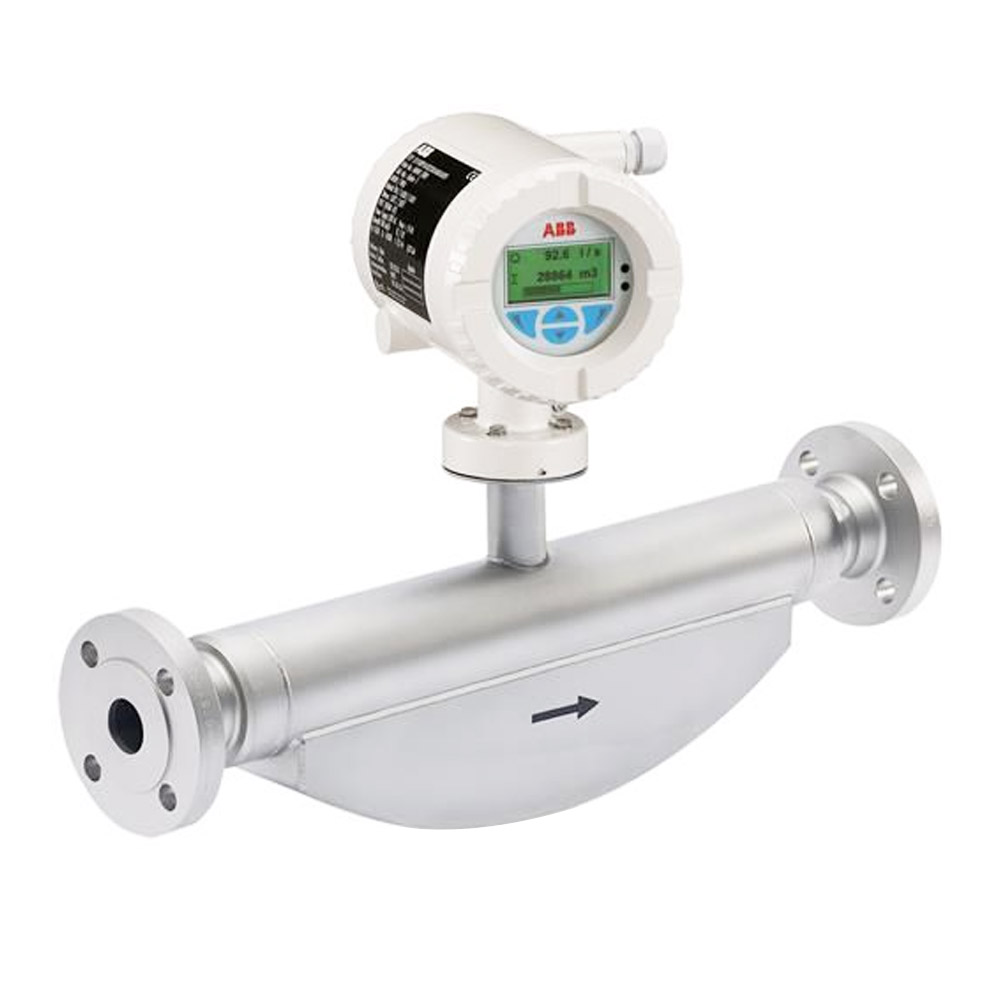

CoriolisMaster flowmeters offer high accuracy and low pressure loss. With its compact design, it saves installation costs, and with its low pressure loss, it allows you to save on operating costs throughout the life cycle. Flow measurement (mass and volumetric), density, temperature and concentration measurement with a single flowmeter.
Mass flow measurement in hygienic applications CoriolisMaster Hygienic is a general purpose flow meter for hygienic applications where a polished wet surface is required, from high precision filling to process monitoring under difficult conditions. It provides safe use in hygienic flow measurements with its certified cleanability feature.
The CorliolisMaster FCH 300 is one of the most cost-effective flowmeters on the market, with minimal installation requirements and lifetime costs. Plus it is suitable for hygienic applications. CoriolisMaster FCH100 series, on the other hand, provides ideal system integration in simple transmitter interface uses.
Coriolis FCM2000 is for many industries and applications...
The Coriolis FCM2000 MS2 features a bent single tube flowmeter designed for very low flow rates. You can measure even a single drop of fluid with high precision. The unique S shape tube and modular design make the Coriolis FCM2000 MC2 an ideal instrument for demanding measurement requirements.
The MS2 series are low flow meters for a variety of industries and applications. It offers unrivaled measurement performance and is easy to install. The MC2 series is a general purpose flow meter proven in thousands of applications worldwide, providing excellent results under difficult conditions such as rapidly changing liquids.
Filling applications that facilitate resource savings
ABB flow measurement products facilitate resource savings, from filling road tankers to container or mixing liquids. For example, the chemical industry.
In the chemical plant process shown above, phosphoric acid is produced in different amounts and at different concentrations. The operator selects two parameters: the amount in kilograms and the concentration of phosphoric acid. The control system automatically controls the mixing and filling operations by dosing water according to the concentration requirement.
Previously, the operator would first take the calculated amount of highly concentrated acid into the tank and then add water until the required concentration level was reached. This would cause errors in volumetric filling. Either the trucks were not 100% filled or they were reloaded after the weight was checked. The use of Coriolis flow meters has eliminated these problems.
In order to provide high-precision online blending of water and acid, the flowmeter measures with a filling accuracy of 0.1% and calculates density and concentration with high precision. An electromagnetic flowmeter can be used for cross-reference. In this application, the filling process was shortened by 20 minutes per vehicle by using CoriolisMaster. Considering that 3000 vehicles are loaded per year, CoriolisMaster will help you save a lot in terms of time and cost.
